XPS Overlay Panels - XPSALU20 - 20mm Foil Faced XPS

Underfloor Heating XPS OVERLAY PANELS 20mm

High density lightweight XPS extruded routed insulation panel with aluminium diffuser with high output & low profile.
Dimensions: 1200mm x 600mm, 0.72sqmcoverage per floor panel.
With radius bend integral so no end return required which allows greater surface area for heat conductivity.
The 20mm panel is for use with 16mm pipe at 150mm centres.
100 micron soft tempered aluminium to panel and pipe channel.
Suitable for new build and retro-fit.

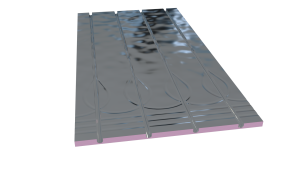

XPS 20mm UFH Panel with Aluminium Diffuser (pictured).

Complete our simple form and we will get right back to you

We have underfloor heating systems for all floor types & heat sources. Along with control options from leading manufacturers to suit your project.

Our team of experts are on hand to offer full support whether its one bespoke development or a multi unit project.

Whether it be a full new build, extension or renovation our UFH team will offer full support to your project.
